4G Pet Tracker

Product Name：KS-X2
Support LTE-FDD/LTE-TDD wireless communication.
Support GPS,BeiDou,AGPS,LBS,WIFI,”
Main Chip：ASR1606S,
GPS Chip: AT6558R-5N32
Band 4G “LTE-FDD B1/B3/B5/B8
LTE-TDD B34/ B38/B39/B40/B41”
Power Characteristics Operating Voltage 3.4-4.2V DC
Charging Voltage 5V DC
Charging Current 500mA
Battery Polymer battery 700mAh
Battery Operating Temperature Charging: 0～+45℃, Discharging: -10～+60

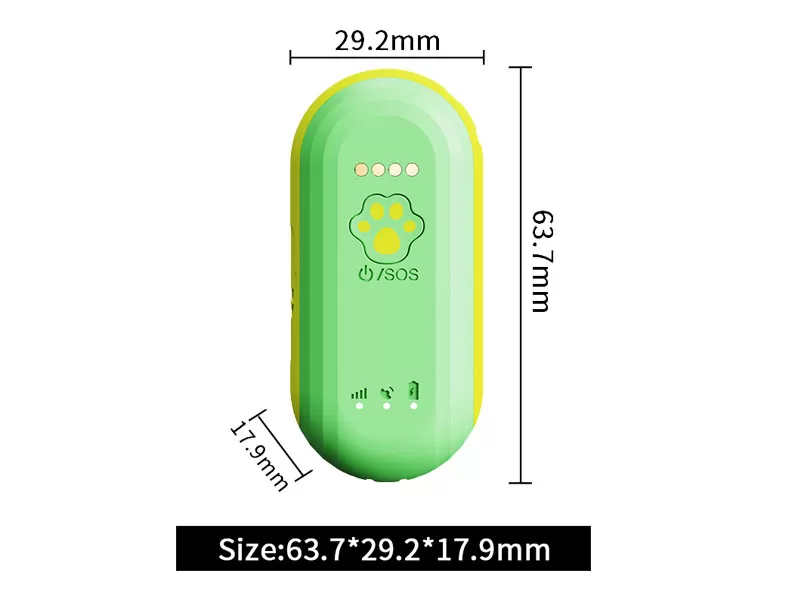

Structural features Product dimensions 63.7*29.2*17.9mm thick
Indicator Blue light: data connectivity indicator, Green light: GPS signal indicator, Red light: charging indicator.
Connection method Main interface Magnetic contact \\
Built-in antenna: GPS ceramic and RF antenna FPC
Main Hardware Function Interface SIM Nano Push Self-Ejecting Card Holder
GPS GPS+BD
G-sensor Support
Wifi Scan Support
Power on mode Long press the power on button for 3 seconds
MIC Support
Speaker Support
Track Playback Support
Electronic fence support
Alarm Information Support
Battery Display Support
Remote Listening Support
Two-way call support
Vibration Alarm Support
AGPS Support
Hardware related index Maximum output power “LTE-FDD B1/B3/B/5/B8:23dBm±2dBm
LTE-TDD B34/B38/B39/B40/B41:23dBm±2dBm”
Dynamic output range -45 to 23dBm
Receiving Sensitivity -98dBm
Maximum Frequency Error ±0.1ppm
Sensitivity “Cold Start: -148dbm
Warm Start: -156dbm
Recapture: -160dbm
Tracking: -162dbm”
Time to first fix Cold start: 32 seconds average
