Power supply: battery powered
Operating voltage range: DC 9V -45V
Working current: 12V/40mA
Sleep current: 12V/10mA
Built-in battery capacity: 180 mAh (3.7V polymer battery) Options
Operating temperature range: -20°C – 75°C
Storage temperature range: -30°C – 80°C
Operating humidity range: 5% – 85% RH Non-condensing
Positioning module brand/chip model: Zhongke Micro AT6558R
Positioning mode: BeiDou+GPS
Cold start time: average 32 seconds
Hot start time: average 1 second Sensitivity (tracking): -162 dBm
Positioning antenna: Built-in antenna
USB:5V charging port

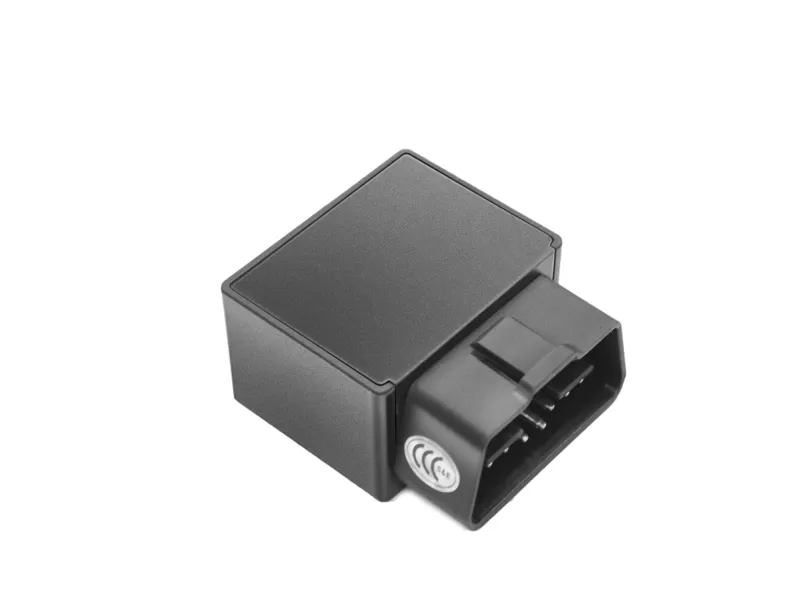

Portable Positioning Terminal
Model No: GT08D
1.Support 4G full network pass.
2.GPS/Beidou/AGPS/LBS accurate positioning.
3.Voltage design supports 9V – 45V.
4.High sensitivity GPS/BDS dual-star positioning module, anti-jamming ceramic antenna, more stable star search signal, support AGPS fast positioning tracking.
5. Appearance size: 53mm * 47mm * 23mm
6. Shell material: ABS plastic
7.Host weight: 45g
Application areas: private car, official car supervision, financial wind control vehicle supervision.
