product description

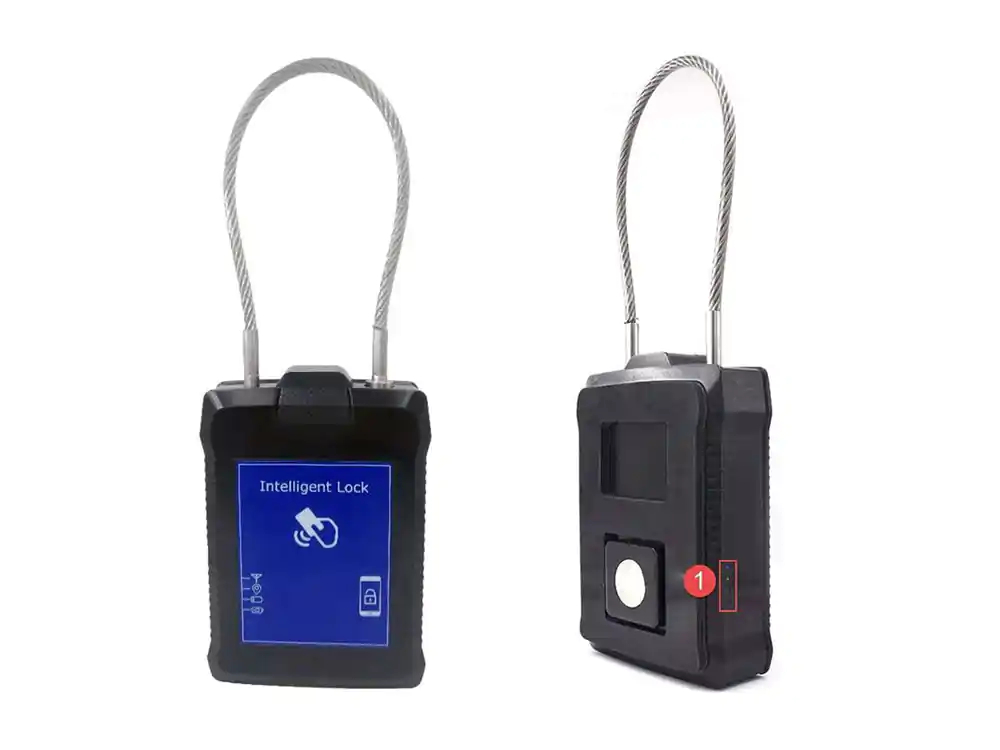

KS600 is a 2G/3G/4G smart electronic lock, Bulit-in10400maH battery, G-sensor and RFID reader, and monitors the location and door status of containers or assets. Through wireless technology, users can remotely open GPS lock via SMS password or (Android or IOS) app. If there is no cellular network, the user can also open the lock on the spot with an authorized RFID key.
Product Features
| hardware/firmware | main function | illustrate |
| hardware | 2G/3G cellular network | 4G can be customized |
| GPS+LBS positioning | LBS information. (CELL ID and LAC) | |
| Two SIM cards | Two MicroSIM cards can be installed, supporting dual SIM single standby mode. The device will automatically select the aSIM card to register with the network. | |
| Built at 10400m AH Rechargeable 18650 Lithium Battery | customizable | |
| Built-in 3-axis accelerometer | Motion or vibration detection | |
| Buzzer and LED indicator light reminder | Different device status buzzer and LED indicator reminder | |
| charger | 5VDC-2A charging | |
| Bluetooth (optional) | Unlock via app or download historical trace data via bluetooth (replaces serial port) | |
| firmware | Real-time location query | Query current location via SMS command |
| open password | Open Device Password (GPRS/SMS) | |
| Unlock the device with an authorized RFID key | Unlock the device with an authorized RFID key | |
| auto lock | The device will automatically lock when the lock cord is inserted | |
| 50 authorized RFID keys | Unlock the device with an authorized RFID key | |
| Polygon Geofences | 10 Polygon Geofences | |
| 5Authorized phone number | Receive SMS alerts or command responses and send commands | |
| Support 9 reminders | Rope lock, clear unauthorized RFID keys, unlock, wrong password, vibrate, | |
| Join the Earth Fence, | ||
| Exit from Geo-fence, | ||
| low battery, | ||
| Open the back cover, | ||
| Motor failure | ||
| Lock and unlock reports | way of locking or unlocking, unlocked by | |
| Password or RFID key, report time, lock | ||
| success or failure | ||
| wake up source | vibration, | |
| RFID key reading, | ||
| Open the back cover, | ||
| Lock cord insertion and extraction, | ||
| Sleep and Timed Wake (RTC) | ||
| Fota | Firmware upgrade via OTA |
| Item | Description |
| Size | 195mmx114mmx37mm |
| Weight | 1000g (includes main unit and 35cm lock cord) |
| Material | Engineering Plastics |
| GPS Module | Skylight 12BL |
| GSM Module | Quectel M26 or UC15 or EC25 |
| Operating Temperature | -20°c–+80°c |
| Storage temperature | -40°c-+80°c |
| Damp | 5%—99% |
| Standard battery | Rechargeable battery 10400 meters |
| Average Operating Current | <90m A |
| Average Current Standby State | <100uA |
| Business hours | 2G device (10400mAh) normal working mode: 100 hours |
| 3G device (10400mAh) normal working mode: 70 hours | |
| Waterproof | ip67 |
| Transfer Mode | Support TCP(GPRS) or SMS(SMS) |
