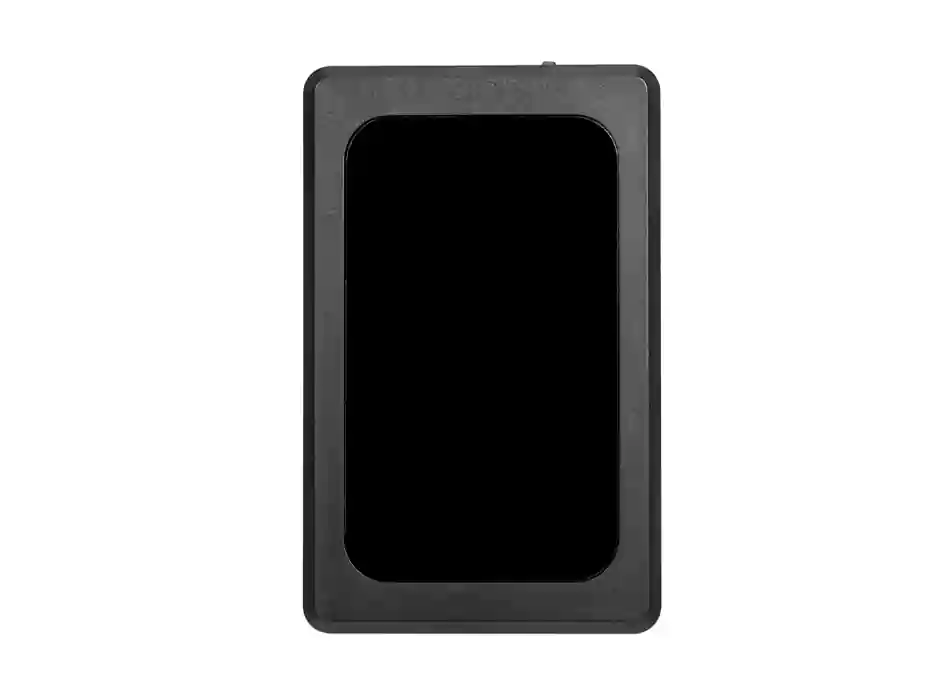

2G 20,000mAh wireless strong magnetic positioning terminal
| Model: KS019 | Product Positioning | Small locator (pets; elderly, children; bicycles; electric vehicles; motorcycles; cars; luggage, valuables, etc.) | |
| Main Features | 1. Real-time positioning 2. Historical track 3. Electronic fence 4. Voice monitoring 5. Vibration alarm 6. Remote shutdown 7. Long standby time 8. Strong magnetic adsorption |
||
| Key Features | 1. Positioning mode: GPRS+GPS+BDS+LBS multi-mode precise positioning 2. 20000mAh polymer battery, with sensor, intelligent power saving, sleep power saving design when stationary 3. Exquisite appearance, high concealment 4. Multiple working modes: fast positioning, standard positioning, power saving positioning 5. Multi-platform monitoring: support Android, Apple system mobile APP and computer and other network clients, WeChat query 6. Global use |
||
| Standby time | 6-12 months | ||
| Support Communications | Mobile; Unicom Card | ||
| 1. Structure section | |||
| Structure section | category | Product Specification | Notes |
| Overall style | Delicate and compact | ||
| Complete size | 102*63*36mm | ||
| Packaging Size | |||
| Weight | 375g net machine weight, 492g with box | ||
| Color | Black | ||
| Keys | none | ||
| screen | none | ||
| gps antenna | High Sensitivity Ceramic Active Antenna | ||
| GSM Antenna | FPC Antenna | ||
| Battery | 20000mAh | ||
| SIM Card | 1 | ||
| Vibration Sensor | Support | ||
| I/O Interface | USB charging port | ||
| Waterproof Rating | IP67 deep water resistance | ||
| 2. Hardware part | |||
| Hardware section | Chip | MTK MT6261+RDA6625E | |
| GSM Band | 850/900/1800/1900MHz | ||
| GPS Chip | UBLOX G7020 | ||
| GPRS | Class12 | ||
| GPS Signal | L1,1575.42MHz C/A | ||
| Number of GPS channels | 22 channels | ||
| GPS chip level receiver sensitivity | Tracking: -165dBm, Capture: -148dBm | ||
| WIFI positioning accuracy | none | ||
| GPS Positioning Accuracy | 5～15m | ||
| Base Station Positioning Accuracy | 100-1000m | ||
| Minimum Standby Current | less than 0.5 mA | ||
| Average Standby Current | less than 2.5 mA | ||
| Average Operating Current | about 55mA | ||
| Operating Temperature | -20～70℃ | ||
| Operating Humidity | 5% to 95% do not freeze | ||
| GPS Antenna | Built-in high-sensitivity ceramic antenna | ||
| GSM Antenna | FPC Antenna | ||
| Vibration Sensor | Support | ||
| Microphone | Support | ||
| Material | ABS environmental protection material | ||
| Software section | |||
| Software section | Supported Operating Systems | Support Android 2.3 and above, IOS5.0 and above. | |
| Call function | Remote Pickup | ||
| Language Support | Simplified Chinese, English | Compatible with multiple languages | |
| Location function | GPS+GPRS+LBS three-mode positioning | ||
| AGPS supported | Cold start 38 seconds positioning | ||
| Tamper Alarm | none | ||
| Power Management | Ultra low power power management, intelligent sleep | ||
| Call Back | Send command, auto-dial (center number) | ||
| Smart Fence | Out of the setting range can automatically alarm | ||
| History Track | You can check the historical track within 6 months | ||
